Product Description
Facilitate animal husbandry | Ultra corrosion resistant Powder Coating
Prepainted Galvanized Steel Sheets
BackgroundAt present, most of the market uses

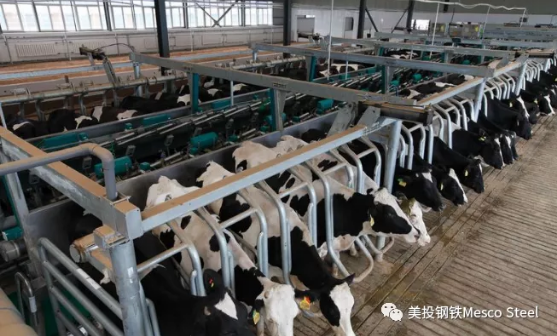

Steel Structure to build livestock farm. However, more ammonia gas is produced in this environment, which is alkaline when meeting water. It is highly corrosive to farm. In addition, frequently using the clean disinfectant will also produce greater corrosion to the prepainted steel plate. Therefore, the prepainted steel plate used in livestock farm is more prone to corrosion, paint removal, bubbles and other phenomena, resulting in a large increase in costs.
Aiming at the needs of animal husbandry’s environment, to facilitate the development of animal husbandry, MESCO STEEL iron and innovate a new product, ultra corrosion resistant
Powder Coated Steel plate for animal husbandry -- "double thickening, super corrosion resistance, strong weather resistance, heat insulation and energy saving.”
Product feature：
1. Ultra corrosion resistant powder coated steel plate for animal husbandry. Corrosion resistance is more than 5 times better than
national standard color coated steel plate.
1） ZAM as base metal，coating 150g/m², high corrosion resistance, good cutting protection.
2） Top side with double coating structure：priming coat 35μm+top coat45μm。
3） Back side with special animal husbandry coating：80μm。
4） Edge thickening，good cladding to keep the base metal from corrosion.
2. High corrosion resistant powder coated steel plate for animal husbandry. The corrosion resistance is more than 3 times better
than national standard color coated steel plate.
1）
Galvanized Steel as base metal, zinc coating 120g/m², good corrosion resistance performance.
2） Top side with special animal husbandry coating：45μm.
3） Back side with special animal husbandry coating：45μm.
4） Edge thickening，good cladding to keep the base metal from corrosion.

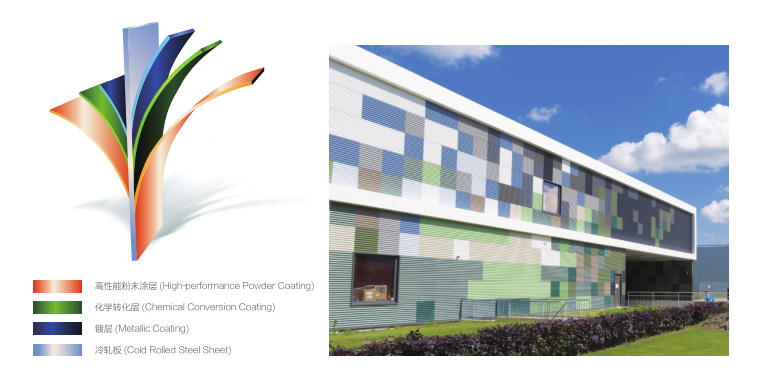

The ultra corrosion resistant powder color coated steel plate has the high coating compactness, high corrosion resistance, good insulation and energy efficiency. It also have the good edge coating. The traditional color coated steel plat, adopts the roller coating method, which results in almost no coating in the edge of base metal. However, the powder color coated steel plate adopts the electrostatic coating way construction, edge ministries have a lot of paint. However, the powder color coated steel plate adopts the static electricity coating method, so it can equably paint the metal, even the edge part. Therefore, powder painted can effectively protect the metal from corrosion, further extending the service life of the metal. High-performance powder Coated Steel VS Solvance-based paint Coating
| |
| |
| top side 45-300μm / back side 25-120μm |
| |

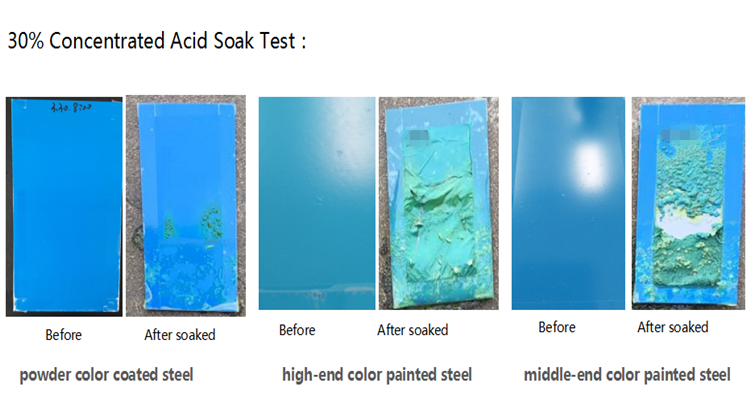

Product Test

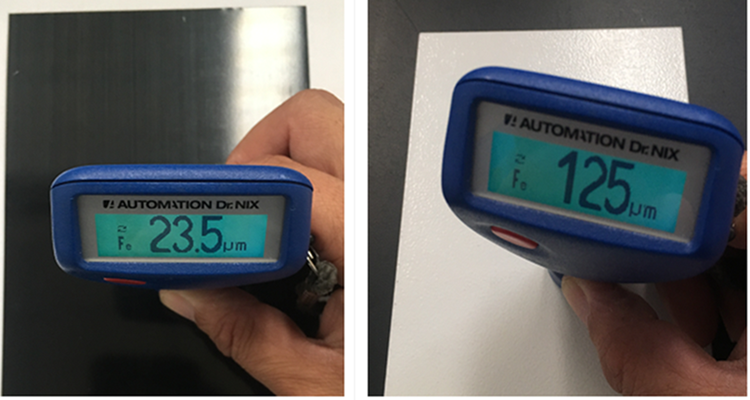

Coating Thickness DifferenceThe traditional PPGI's thickness is generally 15-30μm/5-15μm, however the thickness of powder color coating steel could reach 150μm.

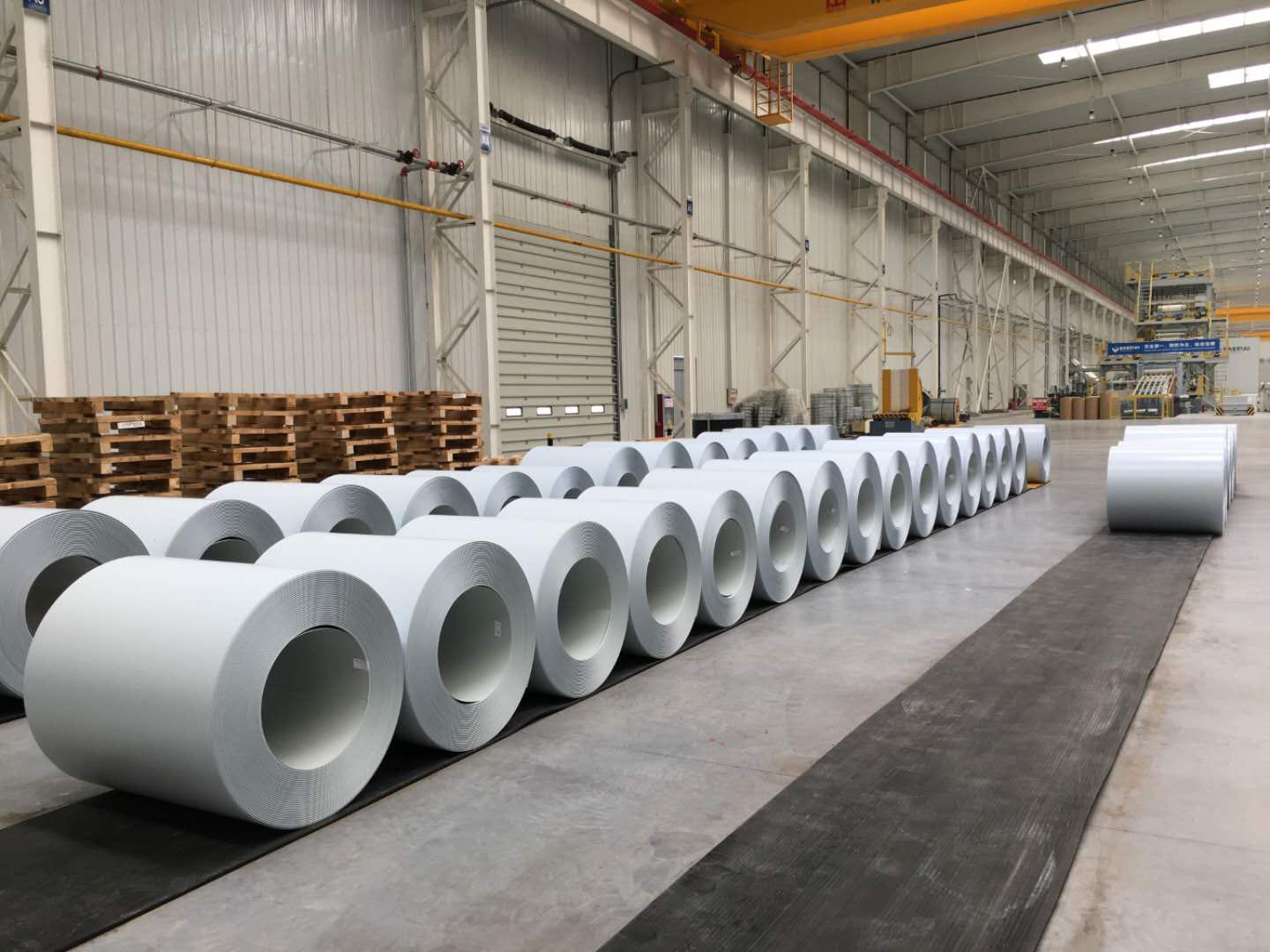

High resistance to corrosion. Product packaging
Company Profile
MESCO STEEL
MESCO is the biggest coating steel supplier in northeast China. Until now, we have exported 51 countries and 400+ companies.
The
Main products are:
Prepainted coil / sheet;Galvanized Steel Coil / sheet;
Galvalume Steel coil / sheet;
Cold Rolled Steel coil/ sheet/Zn-Al-Mg steelcoil/sheet/
Aluminized Steel coil/sheet; Powder coated steel sheet; vitreous steel etc.
On the base of the advantage of rich resource, MESCO has become the regular supplier of raw material of many Global Enterprises, such as Sanyo Japan, Iris Japan, SK Steel Korea, Bluescope, Sicom, etc. Meanwhile it is the supplier or raw material of many large projects in China. The quality and service is highly approved by the clients. Why Choose Us MESCO STEEL ,MORE THAN OFFERING,YOUR RELIABLE STEEL SUPPLIER ......· Profession --- 13 years experiences in CRC, GI, and PPGI products.· Trustworthy --- Strategic partner of Sayo, Hair, Moutai, Nippon Paint, Iris etc. famous brands.· Own brand --- MESCO®, which is high-middle level brand in coated steel products· Buying channel protect --- For PPGI, MESCO STEEL only chooses 1 agent in 1 country· The 3rd party inspection --- any time, at any place
Team & Customers
Contact Us
Contact us if you need more details on Ppgi. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Powder Coating、Powder Coated Steel. If these products fail to match your need, please contact us and we would like to provide relevant information.
